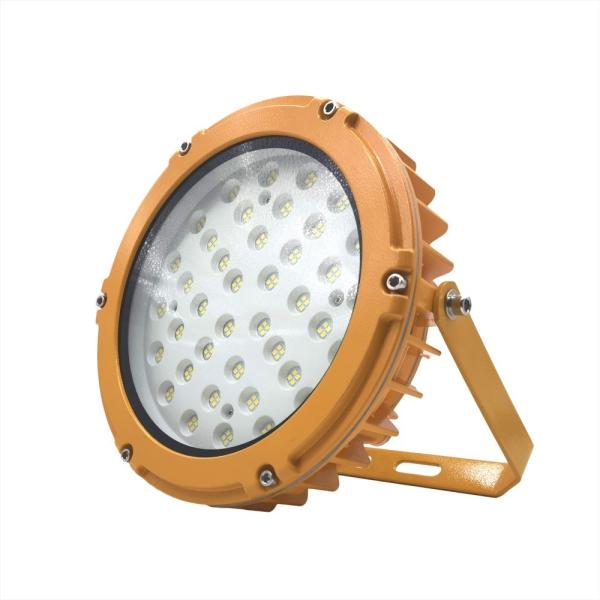

100w Explosion Proof Led High Bay Light
Structural properties:
1. Explosion proof high bay light is designed and manufactured
completely in accordance with the explosion-proof explosion-proof
requirements. It has excellent explosion-proof effect and can work
safely and reliably in various places.
2, explosion proof led light shell is made of high-quality aluminum
alloy die-casting, high strength, surface high-voltage
electrostatic spraying and sealing process can prevent rain, water
spray; lamp shell will never corrode, rust, strong corrosion
resistance, anti-corrosion grade Reach WF2.
3. Adopt toughened glass with high strength, pass strict impact
test and heat resistance test, and have reliable explosion-proof
performance.
4. There is a good sealing structure between the joint surfaces of
explosion proof led floodlights. The sealing rings are made of
silicone rubber material, which is resistant to high temperature
and aging, and the protection level of the shell reaches IP65.
5. The light source cavity is composed of multiple LED lamp beads,
which has a long service life and high luminous efficiency; the use
of nano-reflective cups greatly improves the use efficiency of the
lamp, and the luminous efficiency is higher.
6. The exposed fasteners are all made of stainless steel screws,
which have strong corrosion resistance and will never rust.
7. It can be installed in various installation methods such as
ceiling type, suspension rod type, wall-mounted type, guardrail
type, and bent rod type.
8. Emergency devices can be equipped according to requirements.
When the power supply is cut off, it will automatically switch to
the emergency lighting state;
9. Toughened glass can choose frosted type or transparent type.
Applicable scope:
- 1, Suitable for explosive gas mixtures in temperature groups T1 to
T6. Suitable for hazardous areas with explosive gas mixtures: Zone
1 and Zone 2. Suitable for places with combustible dust: Zone 21
and Zone 22.
- 2, Suitable for hazardous locations with Class IIA, IIB, and IIC
explosive gas mixtures.
- 3, Suitable for fixed lighting needs in hazardous environments such
as chemical plants, warehouses, power plants, paint shops, boiler
rooms, gas stations, gas stations, tank farms, etc.
Parameter Name | Value | Parameter Name | Value |
Type Of Light Source | Led Light Source | Light source technology | SMD patch type |
Enclosure Rating | IP65 | Shell anti-corrosion grade | WF2 |
Power Factor | ≥0.95 | Power Efficiency | ≥0.88 |
Inlet Specification | G3/4°(φ6~φ12mm) | Color temperature | 5500K～6500K |

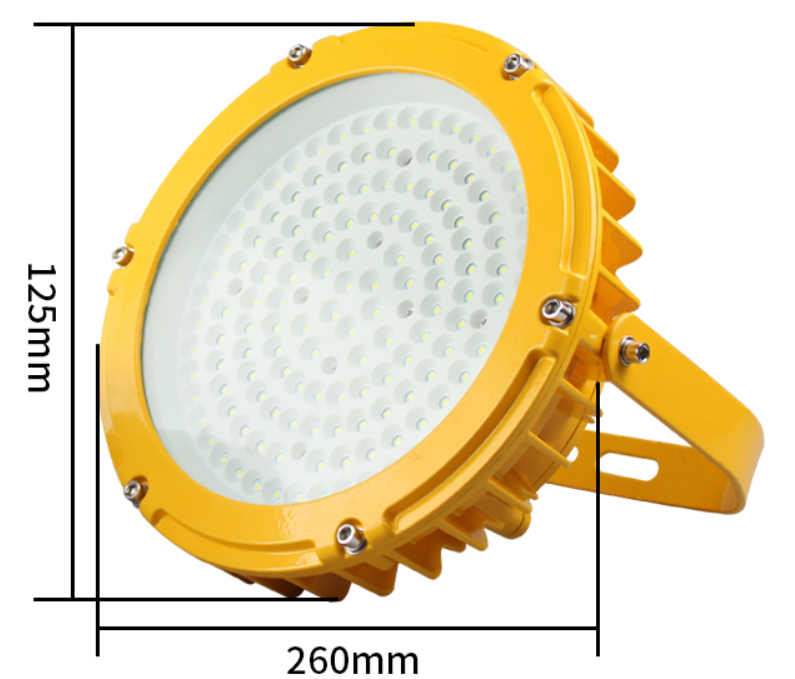

Dimensions | Dia260×125mm | Lamp Weight | 3.9Kg |
| Dia300×130mm | | 5.8Kg |
Recommended Installation Height | 4m～8m | Recommended installation distance | 3m～6m |
Explosion-Proof Mark | Exde ⅡCT6 Gb/Ex tD A21 IP65 T80℃ |
Installation Method | Ceiling mounted (x), boom mounted (g), wall mounted (b30 °/b90 °),
guardrail mounted (h), flange mounted (f)" |
