>>Product structure performance
1. The shell is made of high-quality aluminum alloy die-casting,
with high strength; the surface is treated with high-voltage
electrostatic powder spraying, which is resistant to corrosion.

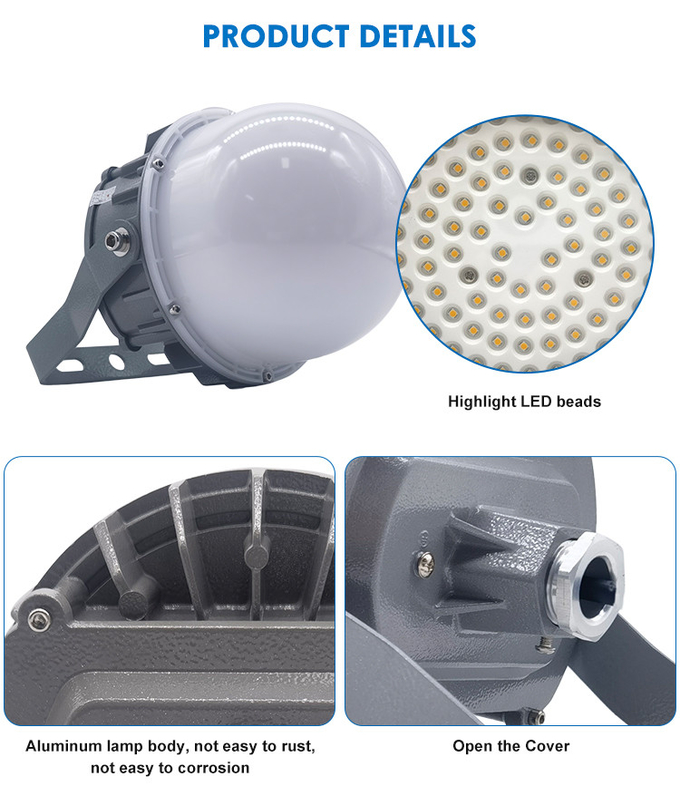

2. Branded LED light source is selected, with high luminous
efficiency, high color rendering, small luminous space, low energy
consumption, no flicker, long service life, maintenance-free, and
no follow-up use cost.
3. Scientific light distribution design, high luminous efficiency,
high utilization rate, large irradiation area. 380° all-round
lighting, uniform illumination; soft light, no glare, effectively
avoiding the visual fatigue of the staff.

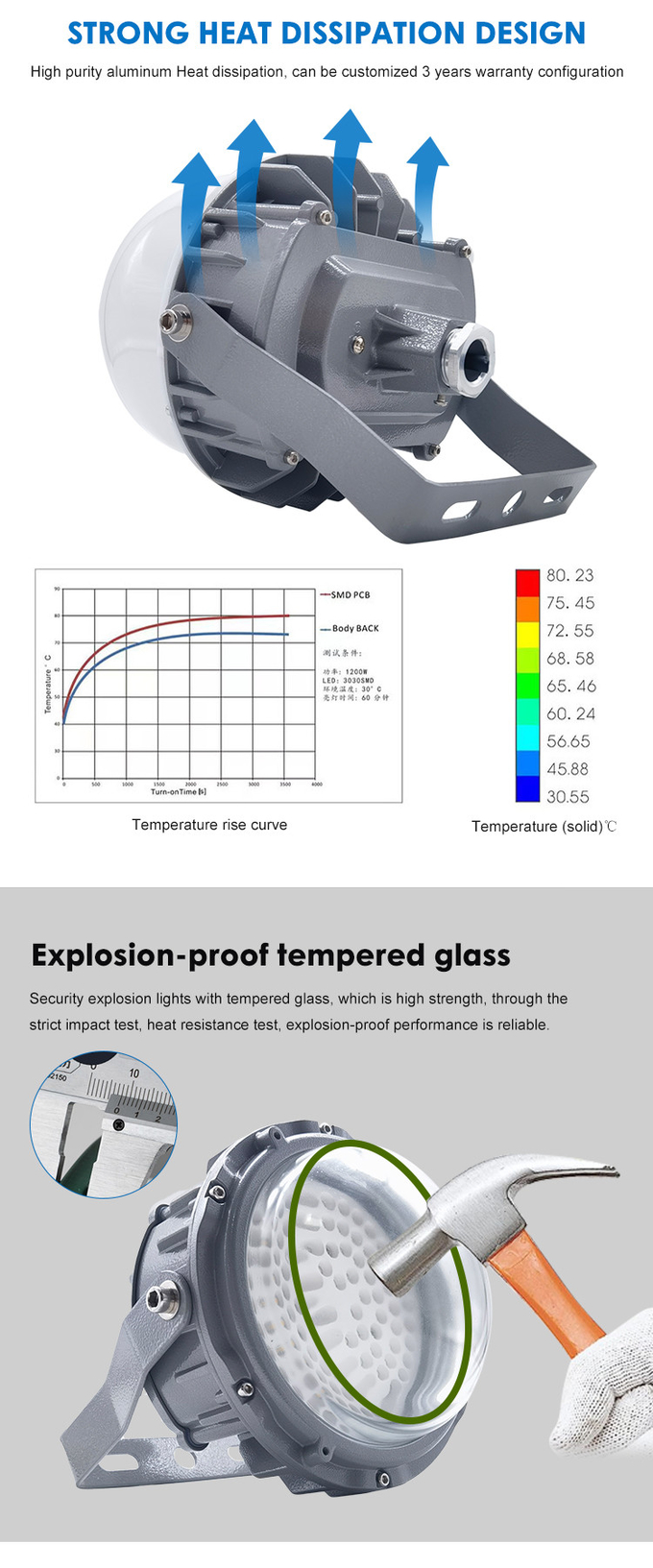

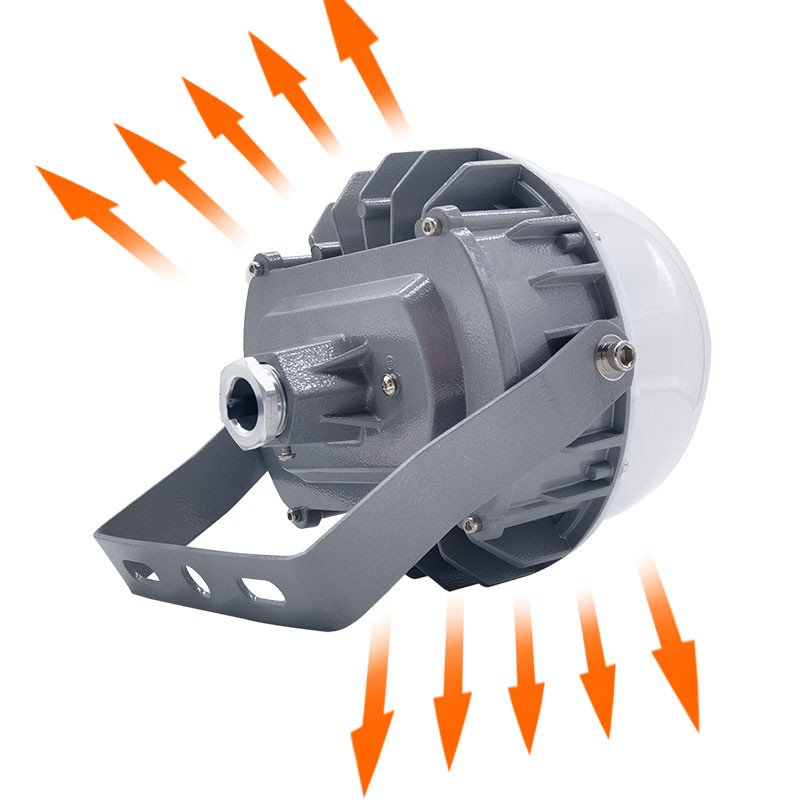

4. The light source cavity is designed as an independent cavity,
the lamp has good heat dissipation, and the service life of the
light source is prolonged.
5. The integrated design is convenient for on-site installation and
maintenance. It also simplifies on-site wiring.
6. Light source components, reflector components, power modules,
etc. are all designed with standard modules, which are easy to
replace and reduce maintenance costs.
7. Scientific sealing structure design, special sealing strip and
embedded method. It has good waterproof and dustproof performance
and can be used in harsh environments. ◎Beautiful appearance,
simple and convenient operation, installed with ceiling type and
ceiling type.
>>Scope of application
It is suitable for flood lighting requirements in railways,
electric power, metallurgy, petroleum and petrochemical and various
factories, workshops, stations, large facilities, venues and other
places. It has no glare, no ghosting, shock resistance and
corrosion resistance, energy saving, safety and reliability.
>>Order notice
1. When ordering, please choose one by one according to the product
model.
2. This lamp has been equipped with power supply and light source
when it leaves the factory.
3. The lamps can be equipped with different installation methods.
4. The rated voltage of the lamp is AC220/50Hz, please use it at
the rated voltage. 5. The standard color temperature of the lamp is
5500k~6500k.
6. If it is necessary for the 3, 4, and 5 items of the lamps to
leave the factory, it should be stated when ordering.
Product Number | SMSF50-B |
Executive standards | GB7000,GB 24906,GB/T 24907,GB/T 24908 |
Electromagnetic compatibility standard | EN61000-3-2,TUV EN61347-1,EN61347-2-13 |
Rated Power | 30-60W |
Degree Of Protection | IP65 |
Anti-Corrosion Grade | WF2 |
Inlet Thread | G3/4" |
Incoming Cable | φ7-12mm |
Operating Temperature | Temperature: -40～45℃
Humidity: 10%-90% |
Power Factor | ≥0.95 |
Power efficiency | ≥0.88 |
Dimensions | φ225*195 |
Net Weight | 1.41kg |
Color Temperature | Warm white light (WW) 2700-3200K
Natural light (NW) 4000-4500K
Positive white light (PW) 6000-6500K |
Color Rendering Index | 80Ra |
Luminous Flux | 3900-7800lm |
Life Span | ≥50000H |
