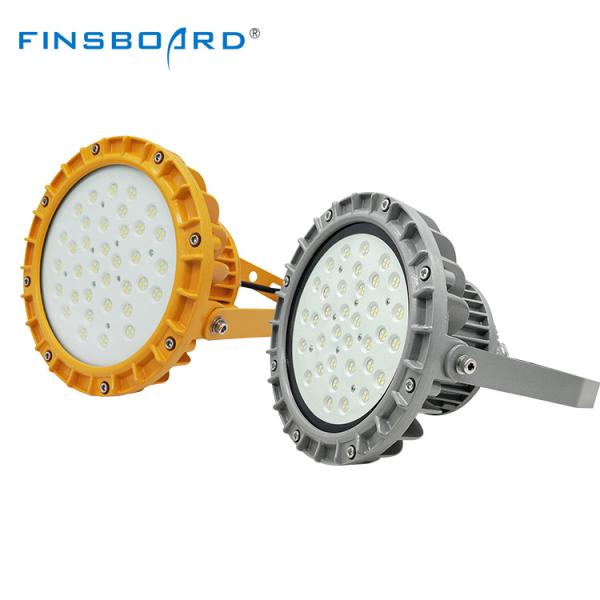

High Bay Explosion Proof LED Light Fixtures For Gas Station
Description
Explosion proof high bay light is designed and manufactured in full
accordance with the requirements of explosion-proof type, with
excellent explosion-proof effect, it can work safely and reliably
in various places.
Our company can customize explosion-proof LED floodlights with
hardware accessories according to customer needs. It has the
characteristics of explosion-proof, high efficiency and energy
saving, long life, durability, and high light efficiency. It is
suitable for use in hazardous environments with high requirements
such as petrochemicals, aviation, metallurgy, and oil refining.
Good performance: Led explosion proof lights' housing is made of high quality
aluminium alloy die-casting, with high strength, high pressure
electrostatic spraying and sealing technology to prevent rain and
water spraying; the housing of the lamp will never corrode or rust,
with strong corrosion resistance and anti-corrosion grade of WF2.
High strength: Security explosion lights with tempered glass, which is high
strength, through the strict impact test, heat resistance test,
explosion-proof performance is reliable.
Protection level: The sealing ring of explosion proof lighting is made of silicone
rubber, which is resistant to high temperatures and ageing, and the
protection level of the housing is IP65.
Components and Installation
1. The explosion proof led light source cavity is made up of
multiple LED beads with a long service life and high luminous
efficiency; the use of nano-reflective cups greatly improves the
efficiency of the luminaire, with higher luminous efficiency.
2. Industrial led light explosion proof exposed fasteners are all
made of stainless steel screws, which are highly resistant to
corrosion and never rust.
3. Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted,
bent-pole-mounted and other installation options are available. Related hardware accessories can be customized according to
customer needs.
4. Explosion-proof lights can be fitted with emergency devices on
request, automatically switching to emergency lighting when the
power supply is cut off.
5. Explosion proof led work lights 50W 100W 150W 200W 240W Tempered
glass is available in either frosted or clear versions. Flat and
convex glass.
Product parameters
Product Number | RFEPL 86 |
Explosion-Proof Mark | Exde IICT6 Gb |
Rated Power | 50-70W | 80-120W | 120-180W |
Degree Of Protection | IP65 |
Anti-Corrosion Grade | WF2 |
Inlet Thread | G3/4" |
Incoming Cable | φ7-12mm |
Working Environment | Temperature: -40～45℃ Humidity: 10%-90% |
Power Factor | ≥0.95 |
Dimensions | φ230*295 | φ275*300 | φ340*330 |
Net Weight | 4.12kg | 5.24kg | 9.75kg |
Color Temperature | 2700-6500K |
Color Rendering Index | 80Ra |
Luminous Flux | 6500-23400lm |
Life Span | ≥50000H |
