Chemical Industry Lab Atex Explosion Proof Led Wall Moun Flood
Light
Features

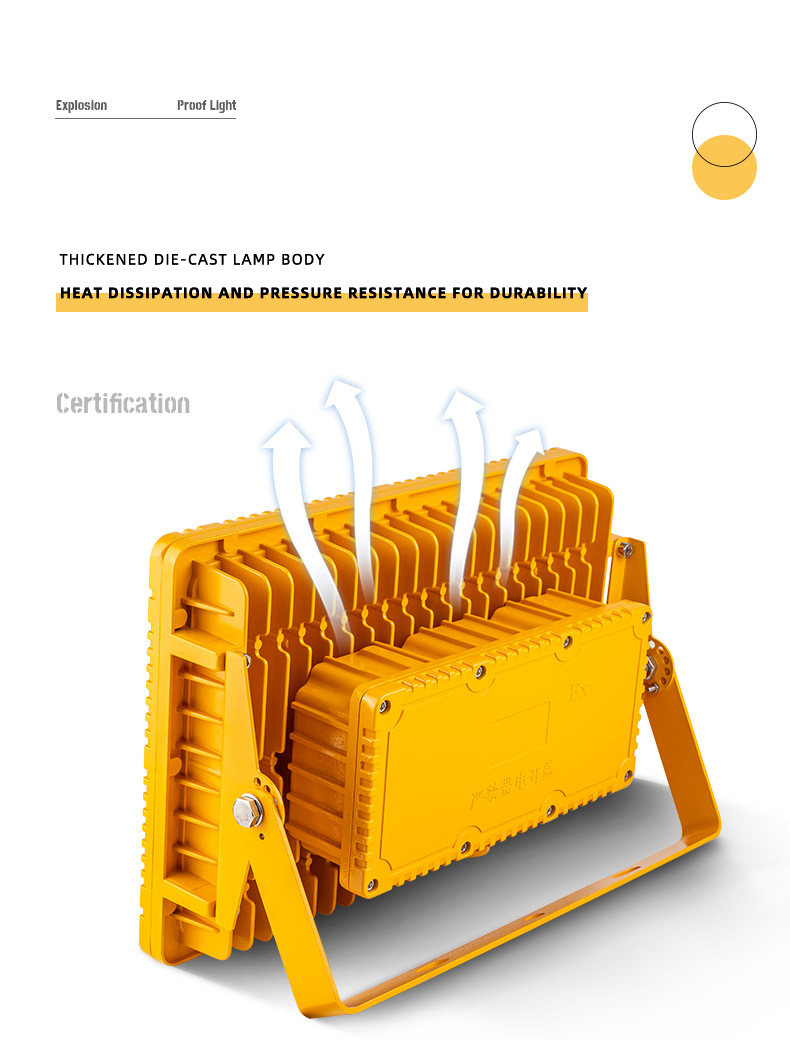

1. Explosion proof led light thick die-cast aluminium housing for
superior thermal performance.

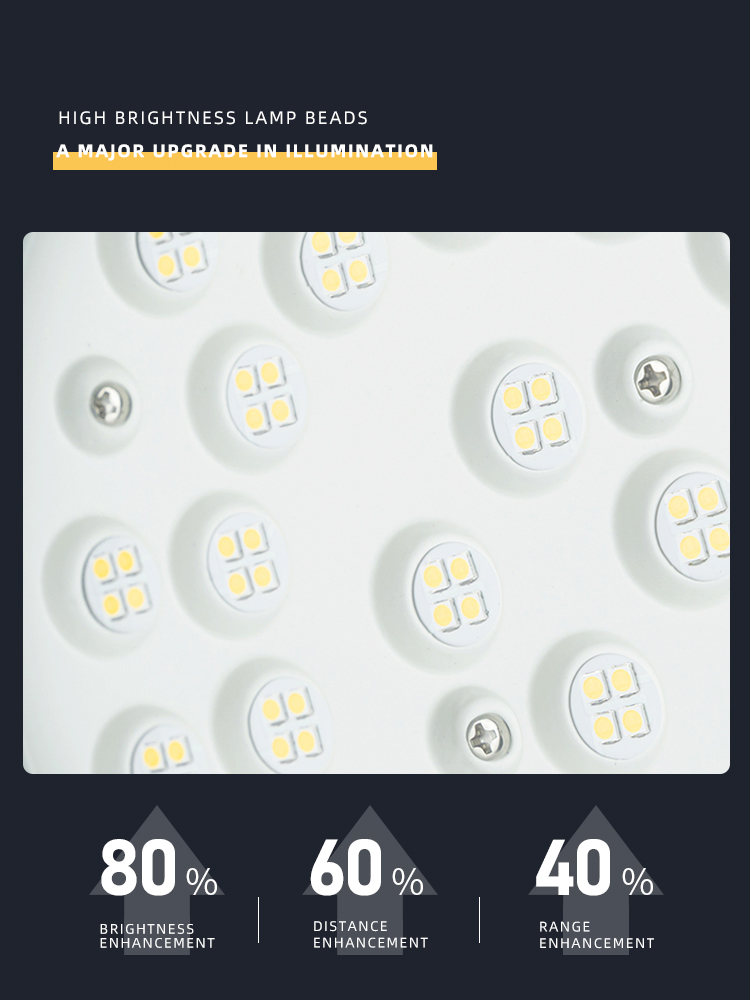

2. Explosion proof led flood light LUMILEDS brand lamp chips, high
brightness and long service life.
3. Atex explosion proof light toughened glass with an impact
resistance rating of IK08 for greater safety when use it.
4. Explosion proof led wall mount flood light with thicker fixing
brackets for more secure mounting of the luminaire.
5. All screws of explosion proof flood light are made of stainless
steel to prevent rusting and ageing, which could lead to safety
hazards.
6. The internal led power supply uses a constant current and
constant voltage power supply for long life and good stability.
Application
This explosion proof flood light is designed to provide fixed
lighting in hazardous environments like chemical plants,
warehouses, power plants, paint workshops, boiler rooms, petrol
stations, fuel stations, gas stations, and tank farms, where
explosion-proof lighting is necessary.
Principle
One of the very important explosion-proof principles of LED
explosion-proof lamps is to limit the temperature of the shell
surface, component surface, or electronic component surface that
comes into contact with explosive gases and dust, as well as to
limit the temperature of the electrical contact surface to be lower
than its minimum ignition temperature or ignition temperature.
Item No. | |
Power | 50W | 100W | 150W | 200W |
| | Aluminum+ glass |
260Size | | 300*245mm | 350*245mm | 400*280mm |
| |
| AC85-265V 2/3/5years warranty. | AC85-265V 2/3/5years warranty. |
| | 2700-6500K |
| | 100-120lm/w |
CRI | | Ra>70 or Ra>80 |
Explosion proof Mark | Exde ⅡC T6 Gb/Ex tD A21 IP65 T80℃ | Exde ⅡC T6 Gb/Ex tD A21 IP65 T80℃ |
Anti-corrosion grade | | WF2 |
Installation way
Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted,
bent-pole-mounted and other installation options are available.
