>> Description
The explosion-proof platform light adopts a scientific sealing
structure, with special sealing strips and embedding methods, and
has excellent waterproof and dust proof performance. There are a variety of installation methods such
as ceiling type, pole hanging type, bracket type, wall type, flange
type, and guardrail type, with beautiful design and convenient
operation.

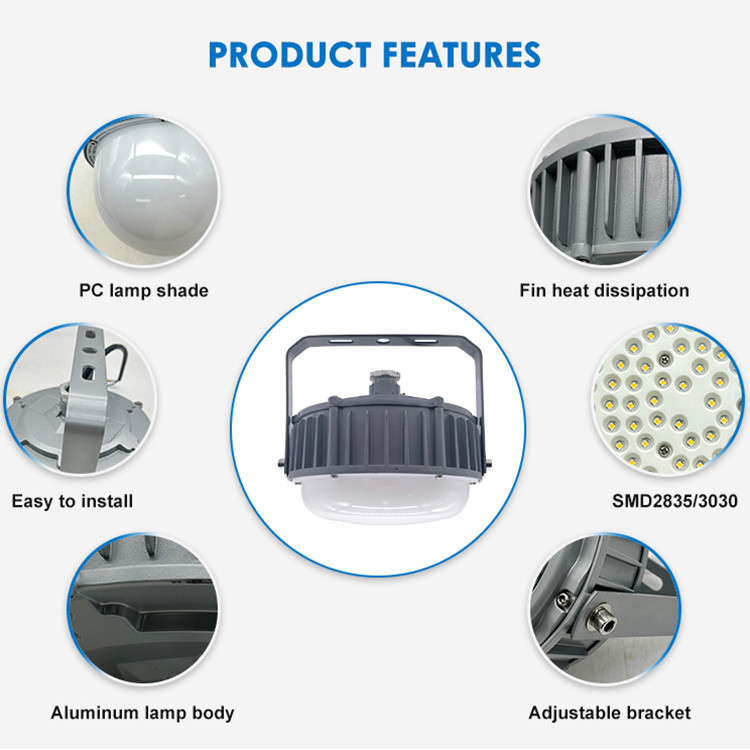

>>Product structure performance
1. The casing is made of high-quality aluminum alloy die-casting,
with high strength; the surface is treated with high-voltage
electrostatic powder spraying, which is corrosion-resistant.

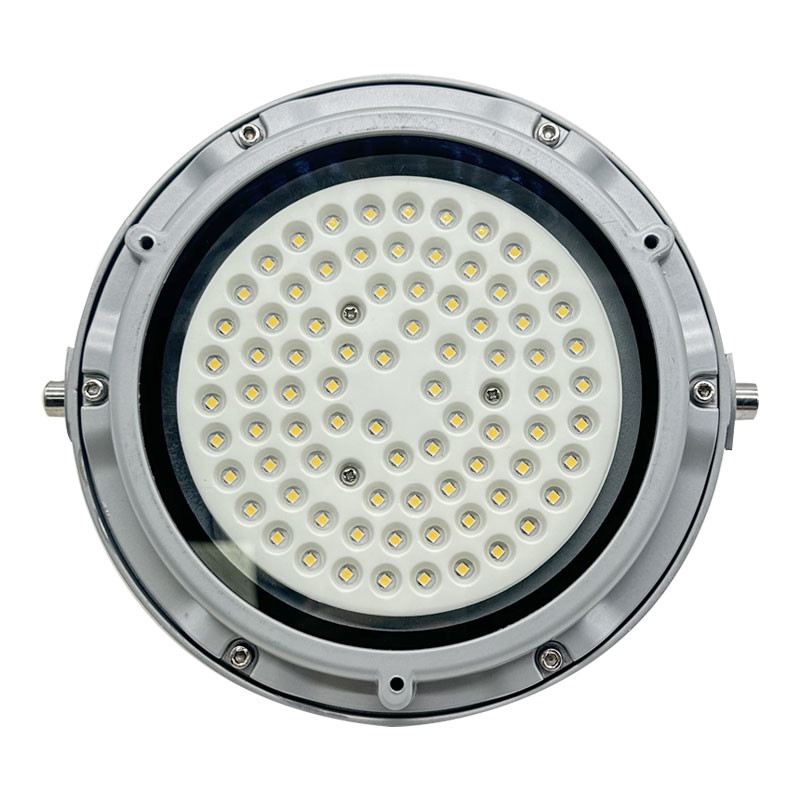

2. Branded LED light source is selected, with high luminous
efficiency, high color rendering, small luminous space, low energy
consumption, no flickering, long service life, maintenance-free,
and no subsequent use costs.
3. Scientific light distribution design, high luminous efficiency,
high utilization rate and large illuminated area. 380° all-round
lighting, uniform lighting; soft light, no glare, effectively
avoiding the visual fatigue of the staff.
4. The cavity of the light source is designed as an independent
cavity, and the heat dissipation of the lamp is good, which
prolongs the service life of the light source.
5. Integrated design, convenient for on-site installation and
maintenance. It also simplifies wiring in the field.
6. Light source components, reflector components, power modules,
etc. are all designed with standard modules, which are convenient
to replace and reduce maintenance costs.
7. Scientific sealing structure design, special sealing strip and
embedding method. With good waterproof and dustproof performance,
it can be used in harsh environments.
8. The appearance is beautiful, the operation is simple and
convenient, and there are ceiling-mounted and ceiling-mounted
installations.
>>Scope of application
Explosion-proof platform lights are suitable for flood lighting
requirements in railways, electric power, metallurgy, petroleum and
petrochemical industries, various factories, workshops, stations,
large facilities, venues and other places. No glare, no ghosting,
impact resistance, corrosion resistance, energy saving, safety and
reliability.
Product Model | SMSF50-C |
Explosion Proof Sign | Exde IICT6 Gb |
Power | AC220V50Hz |
Rated Power | 30-60W |
Protection Level | IP65 |
Corrosion Protection Level | WF2 |

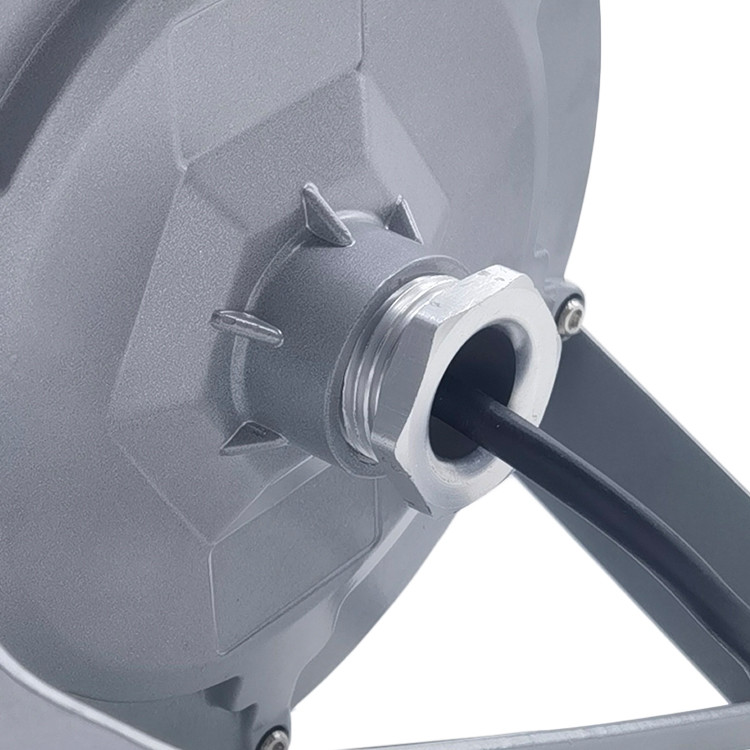

Inlet Thread | G3/4" |
Incoming Cable | φ7-12mm |
Working Temperature | Temperature: -40~45 ℃
Humidity: 10% -90% |
Power Factor | ≥0.95 |
Overall Dimensions | φ200*230 |
Net Weight | 1.41kg |
Color Temperature | 2700-6500K |
Color Rendering Index | 80Ra |
Luminous Flux | 3900-7800lm |
Working Life | ≥50000H |
>>Order notice
1. When ordering, please choose one by one according to the product
model.
2. This lamp has been equipped with power supply and light source
when it leaves the factory.
3. The lamps can be equipped with different installation methods.
4. The rated voltage of the lamp is AC220/50Hz, please use it at
the rated voltage. 5. The standard color temperature of the lamp is
5500k~6500k.
6. If it is necessary for the 3, 4, and 5 items of the lamps to
leave the factory, it should be stated when ordering.
